Image Correlation Velocimeter testing
1. Velocity control of cool slab
|
Object – cool slab. | |
|
Distance to slab – 2000 mm. | |
|
Slab velocity (max.) – 3 m/с. | |
|
Slab Illumination – lamp 100W. |

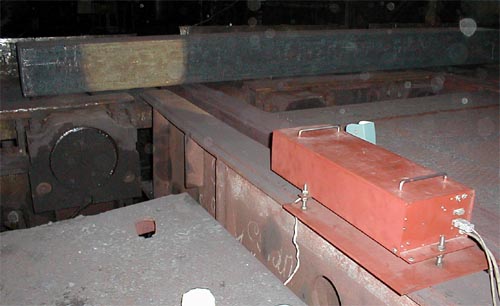

Pic.1.1. ICV testing with cool slab

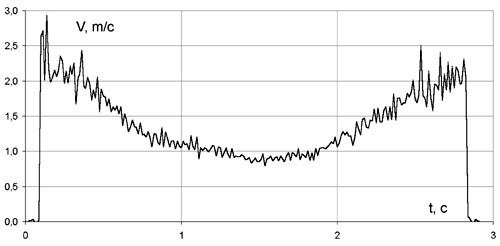

Pic.1.2. Velocity diagram of slab motion
2. Velocity control of hot slab
|
Object – hot slab (600...1000°C). | |
|
Distance to slab – 2300 mm. | |
|
Slab velocity (max.) – 3 m/с. |

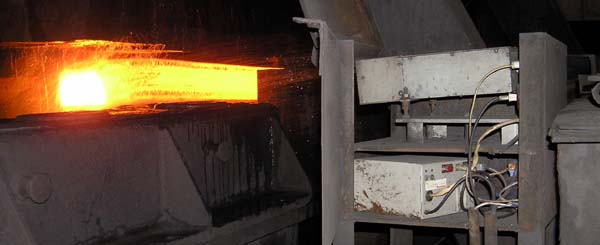

Pic.2.1. ICV testing with hot slab

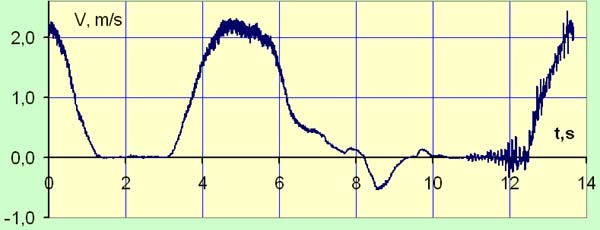

Pic.2.2. Slab velocity diagram

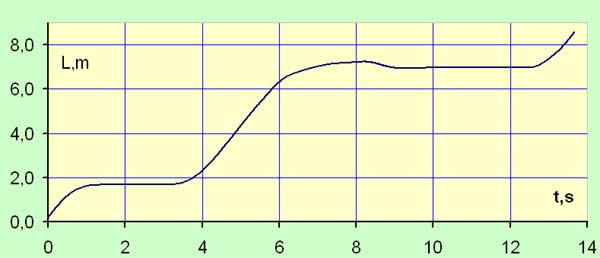

Pic.2.3. Slab position diagram
3. Width measurement of H-beam profile - Width gauge
|
Object – hot beam (900°C). | |
|
Distance to beam – 2350 mm. | |
|
Beam velocity (max.) – 5 m/с. |
Pic.3.1. Width gauge testing with hot beam

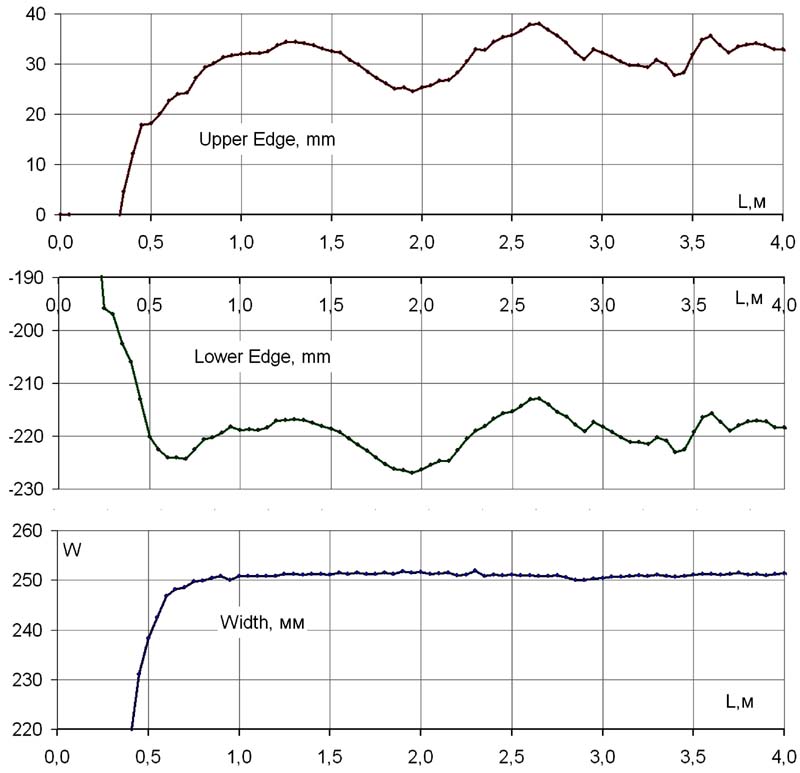

Pic.3.2. Beam width diagram
4. Round profile diameter measurement - Diameter gauge
|
Object – hot round profile (900°C). | |
|
Distance to profile – 2350 mm. | |
|
Profile velocity (max.) – 4 m/с. |

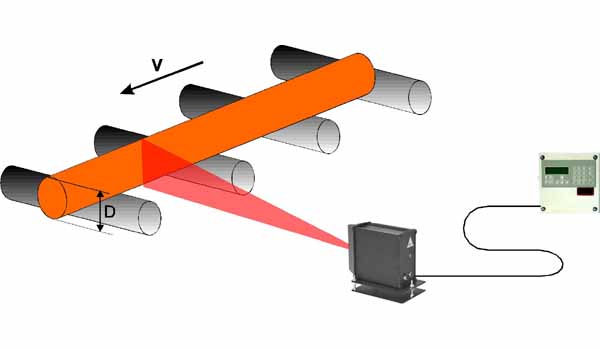

Pic.4.1. Diameter gauge testing with hot round profile

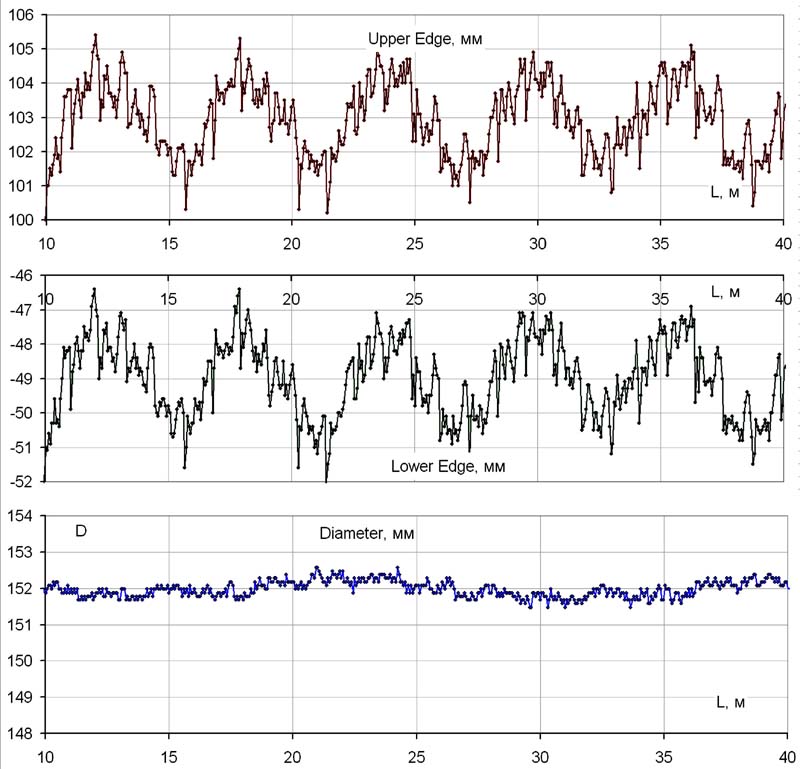

Pic.4.2. Round profile diameter diagram
